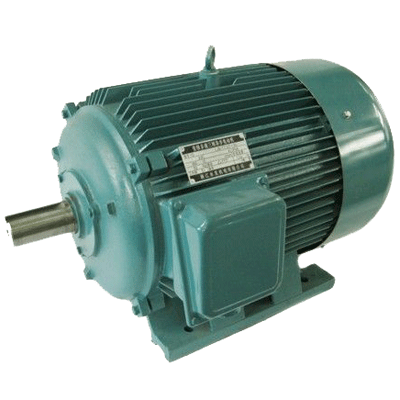

西安泰富西瑪Y三相異步電動機型號說明
西安泰富西瑪Y系列Y三相異步電動機以Y200L1-2為例:Y表示異步電機;200表示電機中心高;M表示機座長度代號;1表示鐵心長度代號;4表示電機極數。Y系列(IP44)三相異步電機技術參數——西安泰富西瑪電機
型號 |
額定 功率 |
額定 電流 |
轉速 | 效率 |
功率 因數 |
堵轉轉矩 | 堵轉電流 | 最大轉矩 | 噪聲 |
振動 速度 |
重量 | |
額定轉矩 | 額定電流 | 額定轉矩 | 1級 | 2極 | ||||||||
KW | A | r/min | % | COSФ | 倍 | 倍 | 倍 | dB(A) | mm/s | kg | ||
同步轉速 3000r/min (2極)——西安泰富西瑪電機·西安西瑪集團 | ||||||||||||
Y80M1-2 | 0.75 | 1.8 | 2830 | 75.0 | 0.84 | 2.2 | 6.5 | 2.3 | 66 | 71 | 1.8 | 17 |
Y80M2-2 | 1.1 | 2.5 | 2830 | 77.0 | 0.86 | 2.2 | 7.0 | 2.3 | 66 | 71 | 1.8 | 18 |
Y90S-2 | 1.5 | 3.4 | 2840 | 78.0 | 0.85 | 2.2 | 7.0 | 2.3 | 70 | 75 | 1.8 | 22 |
Y90L-2 | 2.2 | 4.8 | 2840 | 80.5 | 0.86 | 2.2 | 7.0 | 2.3 | 70 | 75 | 1.8 | 25 |
Y100L-2 | 3 | 6.4 | 2890 | 82.0 | 0.87 | 2.2 | 7.0 | 2.3 | 74 | 79 | 1.8 | 34 |
Y112M-2 | 4 | 8.2 | 2890 | 85.5 | 0.87 | 2.2 | 7.0 | 2.3 | 74 | 79 | 1.8 | 45 |
Y132S1-2 | 5.5 | 11.1 | 2900 | 85.5 | 0.88 | 2.0 | 7.0 | 2.3 | 78 | 83 | 1.8 | 67 |
Y132S2-2 | 7.5 | 15.0 | 2900 | 86.2 | 0.88 | 2.0 | 7.0 | 2.3 | 78 | 83 | 1.8 | 72 |
Y160M1-2 | 11 | 21.8 | 2930 | 87.2 | 0.88 | 2.0 | 7.0 | 2.3 | 82 | 87 | 2.8 | 115 |
Y160M2-2 | 15 | 29.4 | 2930 | 88.2 | 0.88 | 2.0 | 7.0 | 2.3 | 82 | 87 | 2.8 | 125 |
Y160L-2 | 18.5 | 35.5 | 2930 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 | 82 | 87 | 2.8 | 145 |
Y180M-2 | 22 | 42.2 | 2940 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 | 87 | 92 | 2.8 | 173 |
Y200L1-2 | 30 | 56.9 | 2950 | 90.0 | 0.89 | 2.0 | 7.0 | 2.2 | 90 | 95 | 2.8 | 232 |
Y200L2-2 | 37 | 69.8 | 2950 | 90.5 | 0.89 | 2.0 | 7.0 | 2.2 | 90 | 95 | 2.8 | 250 |
Y225M-2 | 45 | 84.0 | 2970 | 91.5 | 0.89 | 2.0 | 7.0 | 2.2 | 90 | 97 | 2.8 | 312 |
Y250M-2 | 55 | 103 | 2970 | 91.5 | 0.89 | 2.0 | 7.0 | 2.2 | 92 | 97 | 4.5 | 387 |
Y280S-2 | 75 | 139 | 2970 | 92.0 | 0.89 | 2.0 | 7.0 | 2.2 | 94 | 99 | 4.5 | 515 |
Y280M-2 | 90 | 166 | 2970 | 92.5 | 0.89 | 2.0 | 7.0 | 2.2 | 94 | 99 | 4.5 | 566 |
Y315S-2 | 110 | 203 | 2980 | 92.5 | 0.89 | 1.8 | 6.8 | 2.2 | 99 | 104 | 4.5 | 900 |
Y315M-2 | 132 | 242 | 2980 | 93.0 | 0.89 | 1.8 | 6.8 | 2.2 | 99 | 104 | 4.5 | 1010 |
Y315L1-2 | 160 | 292 | 2980 | 93.5 | 0.89 | 1.8 | 6.8 | 2.2 | 99 | 104 | 4.5 | 1085 |
Y315L2-2 | 200 | 365 | 2980 | 93.5 | 0.89 | 1.8 | 6.8 | 2.2 | 99 | 104 | 4.5 | 1220 |
Y355M1-2 | 220 | 399 | 2980 | 94.2 | 0.89 | 1.2 | 6.9 | 2.2 | 109 | 109 | 4.5 | 1710 |
Y355M2-2 | 250 | 447 | 2985 | 94.5 | 0.90 | 1.2 | 7.0 | 2.2 | 111 | 111 | 4.5 | 1750 |
Y355L1-2 | 280 | 499 | 2985 | 94.7 | 0.90 | 1.2 | 7.1 | 2.2 | 111 | 111 | 4.5 | 1900 |
Y355L2-2 | 315 | 560 | 2985 | 95.0 | 0.90 | 1.2 | 7.1 | 2.2 | 111 | 111 | 4.5 | 2105 |
型號 |
額定 功率 |
額定 電流 |
轉速 | 效率 |
功率 因數 |
堵轉轉矩 | 堵轉電流 | 最大轉矩 | 噪聲 |
振動 速度 |
重量 | |
額定轉矩 | 額定電流 | 額定轉矩 | 1級 | 2極 | ||||||||
KW | A | r/min | % | COSФ | 倍 | 倍 | 倍 | dB(A) | mm/s | kg | ||
同步轉速 1500r/min (4極)——西安泰富西瑪電機·西安西瑪集團 | ||||||||||||
Y180M1-4 | 0.55 | 1.5 | 1390 | 73.0 | 0.76 | 2.4 | 6.0 | 2.3 | 56 | 67 | 1.8 | 17 |
Y180M2-4 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 2.3 | 6.0 | 2.3 | 56 | 67 | 1.8 | 17 |
Y90S-4 | 1.1 | 2.7 | 1400 | 78.0 | 0.78 | 2.3 | 6.5 | 2.3 | 61 | 67 | 1.8 | 25 |
Y90L1-4 | 1.5 | 3.7 | 1400 | 79.0 | 0.79 | 2.3 | 6.5 | 2.3 | 62 | 67 | 1.8 | 26 |
Y100L1-4 | 2.2 | 5 | 1430 | 81.0 | 0.82 | 2.2 | 7.0 | 2.3 | 65 | 70 | 1.8 | 34 |
Y100L2-4 | 3 | 6.8 | 1430 | 82.5 | 0.81 | 2.2 | 7.0 | 2.3 | 65 | 70 | 1.8 | 35 |
Y112M-4 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 2.2 | 7.0 | 2.3 | 68 | 74 | 1.8 | 47 |
Y132S-4 | 5.5 | 11.6 | 1440 | 85.5 | 0.94 | 2.2 | 7.0 | 2.3 | 70 | 78 | 1.8 | 68 |
Y132M-4 | 7.5 | 15.4 | 1440 | 87.0 | 0.85 | 2.2 | 7.0 | 2.3 | 71 | 78 | 1.8 | 79 |
Y160M-4 | 11 | 22.6 | 1460 | 88.0 | 0.84 | 2.2 | 7.0 | 2.3 | 75 | 82 | 1.8 | 122 |
Y160M-4 | 15 | 30.3 | 1460 | 88.5 | 0.85 | 2.2 | 7.0 | 2.3 | 77 | 82 | 1.8 | 132 |
Y180M-4 | 18.5 | 35.9 | 1470 | 91.5 | 0.86 | 2.0 | 7.0 | 2.2 | 77 | 82 | 1.8 | 174 |
Y180L-4 | 22 | 42.5 | 1470 | 91.5 | 0.86 | 2.0 | 7.0 | 2.2 | 77 | 82 | 1.8 | 192 |
Y200L-4 | 30 | 56.8 | 1470 | 92.2 | 0.87 | 2.0 | 7.0 | 2.2 | 79 | 84 | 1.8 | 253 |
Y225M-4 | 37 | 70.4 | 1480 | 91.8 | 0.87 | 1.9 | 7.0 | 2.2 | 79 | 84 | 1.8 | 294 |
Y225M-4 | 45 | 84.2 | 1480 | 92.3 | 0.88 | 1.9 | 7.0 | 2.2 | 79 | 84 | 1.8 | 327 |
Y250M-4 | 55 | 103 | 1480 | 92.6 | 0.88 | 2.0 | 7.0 | 2.2 | 81 | 86 | 2.8 | 381 |
Y280S-4 | 75 | 140 | 1480 | 92.7 | 0.88 | 1.9 | 7.0 | 2.2 | 85 | 90 | 2.8 | 535 |
Y280M-4 | 90 | 164 | 1480 | 93.5 | 0.89 | 1.6 | 7.0 | 2.2 | 85 | 90 | 2.8 | 634 |
Y315S-4 | 110 | 201 | 1480 | 93.5 | 0.89 | 1.8 | 6.8 | 2.2 | 93 | 98 | 2.8 | 912 |
Y315M-4 | 132 | 240 | 1480 | 94.0 | 0.89 | 1.8 | 6.8 | 2.2 | 96 | 101 | 2.8 | 1048 |
Y315L1-4 | 160 | 289 | 1480 | 94.5 | 0.89 | 1.8 | 6.8 | 2.2 | 96 | 101 | 2.8 | 1105 |
Y315L2-4 | 200 | 361 | 1480 | 94.5 | 0.89 | 1.8 | 6.8 | 2.2 | 96 | 101 | 2.8 | 1260 |
Y315M1-4 | 220 | 407 | 1488 | 94.4 | 0.87 | 1.4 | 6.8 | 2.2 | 106 | 106 | 4.5 | 1690 |
Y355M3-4 | 250 | 461 | 1488 | 94.7 | 0.87 | 1.4 | 6.8 | 2.2 | 106 | 106 | 4.5 | 1800 |
Y355L2-4 | 280 | 515 | 1488 | 94.9 | 0.87 | 1.4 | 6.8 | 2.2 | 108 | 108 | 4.5 | 1945 |
Y355L3-4 | 315 | 578 | 1488 | 95.2 | 0.87 | 1.4 | 6.9 | 2.2 | 108 | 108 | 4.5 | 1985 |
型號 |
額定 功率 |
額定 電流 |
轉速 | 效率 |
功率 因數 |
堵轉轉矩 | 堵轉電流 | 最大轉矩 | 噪聲 |
振動 速度 |
重量 | |
額定轉矩 | 額定電流 | 額定轉矩 | 1級 | 2極 | ||||||||
KW | A | r/min | % | COSФ | 倍 | 倍 | 倍 | dB(A) | mm/s | kg | ||
同步轉速 1000r/min (6極)——西安泰富西瑪電機·西安西瑪集團 | ||||||||||||
Y90S-6 | 0.75 | 2.3 | 910 | 72.5 | 0.70 | 2.0 | 5.5 | 2.2 | 56 | 65 | 1.8 | 21 |
Y90L-6 | 1.1 | 3.2 | 910 | 73.5 | 0.72 | 2.0 | 5.5 | 2.2 | 56 | 65 | 1.8 | 24 |
Y100L-6 | 1.5 | 4 | 940 | 77.5 | 0.74 | 2.0 | 6.0 | 2.2 | 62 | 67 | 1.8 | 35 |
Y112M-6 | 2.2 | 5.6 | 940 | 80.5 | 0.74 | 2.0 | 6.0 | 2.2 | 62 | 67 | 1.8 | 45 |
Y132S-6 | 3 | 7.2 | 960 | 83.0 | 0.76 | 2.0 | 6.5 | 2.2 | 66 | 71 | 1.8 | 66 |
Y132M1-6 | 4 | 9.4 | 960 | 84.0 | 0.77 | 2.0 | 6.5 | 2.2 | 66 | 71 | 1.8 | 75 |
Y132M2-6 | 5.5 | 12.6 | 960 | 85.3 | 0.78 | 2.0 | 6.5 | 2.2 | 66 | 71 | 1.8 | 85 |
Y160M-6 | 7.5 | 17 | 970 | 86.0 | 0.78 | 2.0 | 6.5 | 2.0 | 69 | 75 | 1.8 | 116 |
Y160L-6 | 11 | 24.6 | 970 | 87.0 | 0.78 | 2.0 | 6.5 | 2.0 | 70 | 75 | 1.8 | 128 |
Y180L-6 | 15 | 31.4 | 970 | 89.5 | 0.81 | 1.8 | 6.5 | 2.0 | 70 | 78 | 1.8 | 182 |
Y200L1-6 | 18.5 | 37.7 | 970 | 89.8 | 0.83 | 1.8 | 6.5 | 2.0 | 73 | 78 | 1.8 | 228 |
Y200L2-6 | 22 | 44.6 | 970 | 90.2 | 0.83 | 1.8 | 6.5 | 2.0 | 73 | 78 | 1.8 | 246 |
Y225M-6 | 30 | 59.5 | 980 | 90.2 | 0.85 | 1.7 | 6.5 | 2.0 | 76 | 81 | 1.8 | 294 |
Y225M-6 | 37 | 72 | 980 | 90.8 | 0.86 | 1.8 | 6.5 | 2.0 | 76 | 81 | 2.8 | 395 |
Y280S-6 | 45 | 85.4 | 980 | 92.0 | 0.87 | 1.8 | 6.5 | 2.0 | 79 | 84 | 2.8 | 505 |
Y280M-6 | 55 | 104 | 980 | 92.0 | 0.87 | 1.8 | 6.5 | 2.0 | 79 | 84 | 2.8 | 566 |
Y315S-6 | 75 | 141 | 980 | 92.8 | 0.87 | 1.6 | 6.5 | 2.0 | 87 | 92 | 2.8 | 850 |
Y315M-6 | 90 | 169 | 980 | 93.2 | 0.87 | 1.6 | 6.5 | 2.0 | 87 | 92 | 2.8 | 965 |
Y315L1-6 | 110 | 206 | 980 | 93.5 | 0.87 | 1.6 | 6.5 | 2.0 | 87 | 92 | 2.8 | 1028 |
Y315L2-6 | 132 | 246 | 980 | 93.8 | 0.87 | 1.6 | 6.5 | 2.0 | 87 | 92 | 2.8 | 1195 |
Y355M1-6 | 165 | 300 | 990 | 94.1 | 0.86 | 1.3 | 6.7 | 2.0 | 102 | 102 | 4.5 | 1590 |
Y355M2-6 | 185 | 347 | 990 | 94.3 | 0.86 | 1.3 | 6.7 | 2.0 | 102 | 102 | 4.5 | 1665 |
Y355M4-6 | 200 | 375 | 990 | 94.3 | 0.86 | 1.3 | 6.7 | 2.0 | 102 | 102 | 4.5 | 1725 |
Y355L1-6 | 220 | 311 | 991 | 94.5 | 0.86 | 1.3 | 6.7 | 2.0 | 102 | 102 | 4.5 | 1780 |
Y355L3-6 | 250 | 466 | 991 | 94.7 | 0.86 | 1.3 | 6.7 | 2.0 | 102 | 102 | 4.5 | 1865 |
型號 |
額定 功率 |
額定 電流 |
轉速 | 效率 |
功率 因數 |
堵轉轉矩 | 堵轉電流 | 最大轉矩 | 噪聲 |
振動 速度 |
重量 | |
額定轉矩 | 額定電流 | 額定轉矩 | 1級 | 2極 | ||||||||
KW | A | r/min | % | COSФ | 倍 | 倍 | 倍 | dB(A) | mm/s | kg | ||
同步轉速 750r/min (8極)——西安泰富西瑪電機·西安西瑪集團 | ||||||||||||
Y132S-8 | 2.2 | 5.8 | 710 | 80.5 | 0.71 | 2.0 | 5.5 | 2.0 | 61 | 66 | 1.8 | 66 |
Y132M-8 | 3 | 7.7 | 710 | 82.0 | 0.72 | 2.0 | 5.5 | 2.0 | 61 | 66 | 1.8 | 76 |
Y160M1-8 | 4 | 9.9 | 720 | 84.0 | 0.73 | 2.0 | 6.0 | 2.0 | 64 | 69 | 1.8 | 105 |
Y160M2-8 | 5.5 | 13.3 | 720 | 85.0 | 0.74 | 2.0 | 6.0 | 2.0 | 64 | 69 | 1.8 | 115 |
Y160L-8 | 7.5 | 17.7 | 720 | 86.0 | 0.75 | 2.0 | 5.5 | 2.0 | 67 | 72 | 1.8 | 140 |
Y180L-8 | 11 | 24.8 | 730 | 87.5 | 0.77 | 1.7 | 6.0 | 2.0 | 67 | 72 | 1.8 | 180 |
Y200L-8 | 15 | 31.4 | 730 | 88.0 | 0.76 | 1.8 | 6.0 | 2.0 | 70 | 75 | 1.8 | 228 |
Y225S-8 | 18.5 | 41.3 | 730 | 89.5 | 0.76 | 1.7 | 6.0 | 2.0 | 70 | 75 | 1.8 | 265 |
Y225M-8 | 22 | 47.6 | 730 | 90.0 | 0.78 | 1.8 | 6.0 | 2.0 | 70 | 75 | 1.8 | 296 |
Y250M-8 | 30 | 63 | 730 | 90.5 | 0.80 | 1.8 | 6.0 | 2.0 | 73 | 78 | 2.8 | 391 |
Y280S-8 | 37 | 78.2 | 740 | 91.0 | 0.79 | 1.8 | 6.0 | 2.0 | 73 | 78 | 2.8 | 500 |
Y280M-8 | 45 | 93.2 | 740 | 91.7 | 0.80 | 1.8 | 6.0 | 2.0 | 73 | 78 | 2.8 | 562 |
Y315S-8 | 55 | 114 | 740 | 92.0 | 0.80 | 1.6 | 6.5 | 2.0 | 82 | 87 | 2.8 | 875 |
Y315M-8 | 75 | 152 | 740 | 92.5 | 0.81 | 1.6 | 6.5 | 2.0 | 82 | 87 | 2.8 | 1008 |
Y315L1-8 | 90 | 179 | 740 | 93.0 | 0.82 | 1.6 | 6.5 | 2.0 | 82 | 87 | 2.8 | 1065 |
Y315L2-8 | 110 | 218 | 740 | 93.3 | 0.82 | 1.6 | 6.3 | 2.0 | 82 | 87 | 2.8 | 1195 |
Y315M2-8 | 132 | 264 | 740 | 93.8 | 0.81 | 1.3 | 6.3 | 2.0 | 99 | 99 | 4.5 | 1675 |
Y355M4-8 | 160 | 319 | 740 | 94.0 | 0.81 | 1.3 | 6.3 | 2.0 | 99 | 99 | 4.5 | 1730 |
Y355L3-8 | 185 | 368 | 742 | 94.2 | 0.81 | 1.3 | 6.3 | 2.0 | 99 | 99 | 4.5 | 1840 |
Y355L4-8 | 200 | 398 | 743 | 94.3 | 0.81 | 1.3 | 6.3 | 2.0 | 99 | 99 | 4.5 | 1905 |
型號 |
額定 功率 |
額定 電流 |
轉速 | 效率 |
功率 因數 |
堵轉轉矩 | 堵轉電流 | 最大轉矩 | 噪聲 |
振動 速度 |
重量 | |
額定轉矩 | 額定電流 | 額定轉矩 | 1級 | 2極 | ||||||||
KW | A | r/min | % | COSФ | 倍 | 倍 | 倍 | dB(A) | mm/s | kg | ||
同步轉速 600r/min (10極)——西安泰富西瑪電機·西安西瑪集團 | ||||||||||||
Y315S-10 | 45 | 101 | 590 | 91.5 | 0.74 | 1.4 | 6.0 | 2.0 | 82 | 87 | 2.8 | 838 |
Y315M-10 | 55 | 123 | 590 | 92.0 | 0.74 | 1.4 | 6.0 | 2.0 | 82 | 87 | 2.8 | 960 |
Y315L2-10 | 75 | 164 | 590 | 92.5 | 0.75 | 1.4 | 6.0 | 2.0 | 82 | 87 | 2.8 | 1180 |
Y355M1-10 | 90 | 191 | 595 | 93.0 | 0.77 | 1.2 | 6.0 | 2.0 | 96 | 96 | 4.5 | 1620 |
Y355M2-10 | 110 | 230 | 595 | 93.2 | 0.78 | 1.2 | 6.0 | 2.0 | 96 | 96 | 4.5 | 1775 |
Y355L1-10 | 132 | 275 | 595 | 93.5 | 0.78 | 1.2 | 6.0 | 2.0 | 96 | 96 | 4.5 | 1880 |
